Specifications
Hp : 13.5
Altenator : 40A
Bore 67mm
stroke 68mm
RPM 3600
weight 110 KG
cubic capacity 479
Fuel Consumption :10.3 L/H
cylinders :2

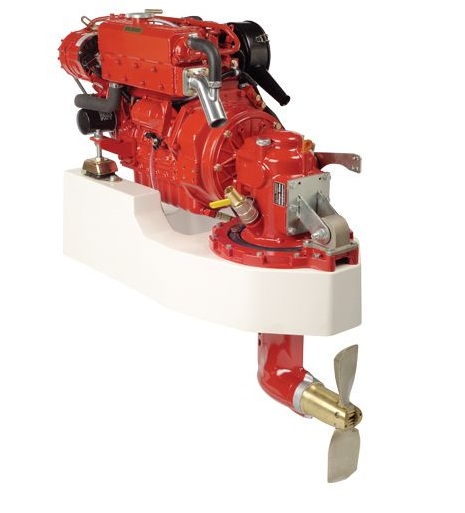

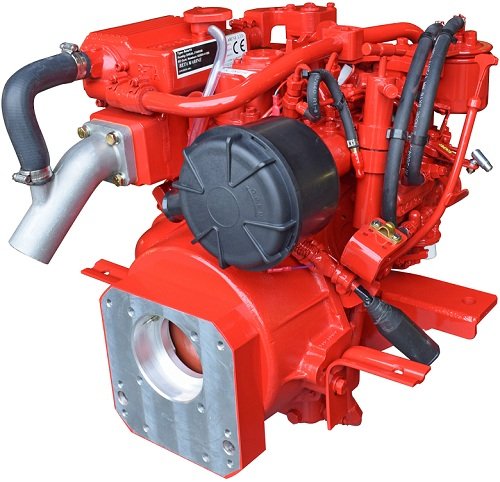

Beta diesel engine 14 Hp with sail drive and without sail drive for sale in Greece by Aibsailing .
Engine is available either with a new saildrive as indicated within section 1 or with an adapter kit for an existing saildrive as indicated in section
2. • Recreational craft directive emission compliant. Mechanically governed.
• Heat exchanger, header tank & water cooled exhaust manifold.
• Fresh & sea water pump, injection bend for wet exhaust.
• Mechanical fuel lift pump, fuel & oil filtration and sump pump.
• Flywheel housing & drive plate with heavy inertia ring for super smooth running at low rpm.
• Special quiet air intake filter.
• 12 volt starter with 40 amp battery charging alternator and ‘Polyvee’ belt drive.
• Shutdown solenoid energised to stop

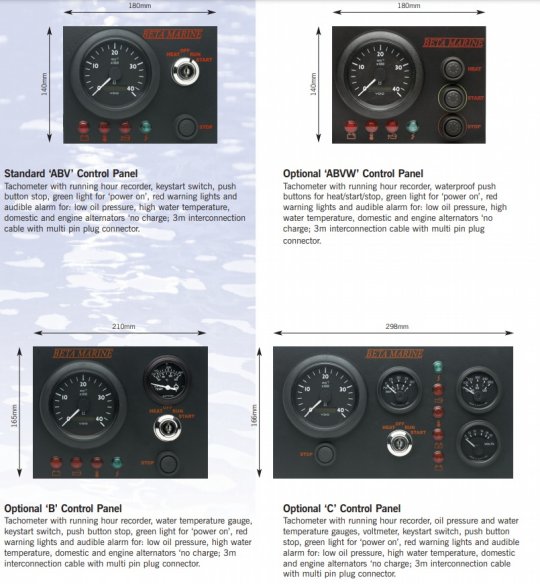

Control Panel ‘ABV’ key switch controlled for engine preheat & start, push button controlled for engine stop, has a tachometer with running hour recorder,
green light indicator for ‘power on’, red warning light indicators & audible alarm for low oil pressure, high water temperature and engine alternator not charging. Complete with 3m of interconnection cable and multi pin plug connector.
• Heavy duty engine feet with flexible mountings.
• “Morse” type end fittings for speed and gear control.
• Beta red paint
• Engine test certificate & operators manual. •
5 year self-service engine warranty.*
• 2 year saildrive warranty.*
• Tri-wall packing on a wooden base.
Prices without SD also which engines can support too!
6641 € ( with 120S Volvo adaptor kit - includes shallow sump with Volvo or Yanmar GRP base)
7004 € (with 130S Volvo adaptor Kid or 20 SD Volvo adaptor kit - includes shallow sump with Volvo or Yanmar GRP base)
Beta 14 hp with gearboxes types IN €
| Twin Disc/Technodrive mechanical gearbox | 6620 € |
| Twin Disc/Technodrive TMC60A - 7° down angle gearbox | 7000 € |
| PRM Marine mechanical gearbox | 6635 € |
| PRM Marine hydraulic gearbox | 8591 € |
| ZF V mechanican gearbox | 11305 € |
| Bobtail" engine with drive plate & housing only - No gearbox | 5765 € |
For more details and full specifications and pricing after discount we are on your disposal at This email address is being protected from spambots. You need JavaScript enabled to view it.
